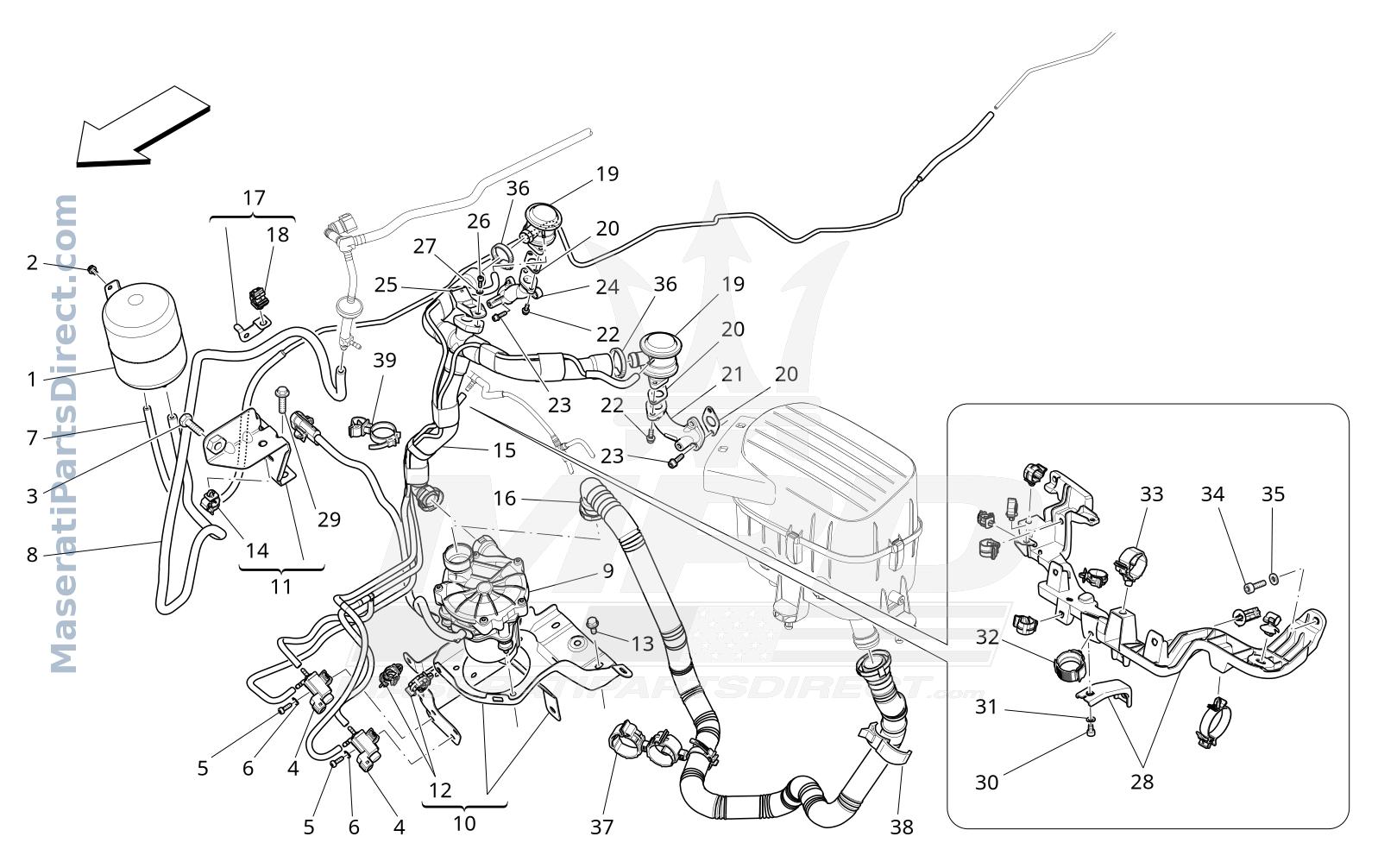

01.50 - 2 - ADDITIONAL AIR SYSTEM

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	675000752	VACUUM TANK	$68.13 Order
2	675000435	SCREW	$6.21 Order
3	675000438	SCREWM8X22	$10.00 Order
4	670002843	ON/OFF SOLENOID VALVE	$70.14 Order
5	14304624	SCREW	$8.00 Order
7	670175154	UNDERBODY VACUUM PIPE - 1st SECTION	$217.29 Order
8	670005592	PIPE BETWEEN VACUUM TANK AND VACUUM PIPE	$61.95 Order
8	670182516	PIPE BETWEEN VACUUM TANK AND VACUUM PIPE	$56.00 Order
9	670003500	SECONDARY AIR PUMP	$538.61 Order
9	670215458	SECONDARY AIR PUMP	$539.20 Order
10	670003501	AIR PUMP FIXING BRACKET	$149.40 Order
11	670104978	BRACKET	$0.00 Order
12	675000076	CLIP	$9.20 Order
13	16286024	SCREWM 6X 16	$11.10 Order
14	675000076	CLIP	$9.20 Order
15	670003008	AIR DELIVERY PIPE TO VALVES ASS.	$477.02 Order
16	670003608	PIPE BETWEEN AIR PUMP AND AIRBOX	$123.64 Order
17	670005593	BRACKET ASSEMBLY	$15.89 Order
18	675000132	CLIP	$6.93 Order
19	283441	SECONDARY AIR VALVE	$327.64 Order
20	186781	GASKET	$17.26 Order
21	292658	LH SECONDARY AIR VALVE SUPPORT	$239.38 Order
22	231618	SCREWM6X20	$6.93 Order
23	231619	SCREWM6X22	$8.64 Order
24	292657	RH SECONDARY AIR VALVE SUPPORT	$229.94 Order
25	670003207	PRESSURE TRANSMITTER	$86.62 Order
26	14305224	SCREWM6X16	$7.65 Order
27	11197774	WASHERD.6.4-12X1.2	$9.20 Order
28	670007033	SECONDARY AIR DUCT PRESSURE SENSOR SUPPORT	$140.78 Order
29	675000438	SCREWM8X22	$10.00 Order
30	675000191	SCREWM6X14	$11.55 Order
31	11197774	WASHERD.6.4-12X1.2	$9.20 Order
32	675000205	CLIP	$38.16 Order
33	675000202	CLIP	$44.06 Order
34	675000191	SCREWM6X14	$11.55 Order
35	11197774	WASHERD.6.4-12X1.2	$9.20 Order
36	675000352	COLLARD.23	$11.72 Order
37	670006740	RETAINING CLIP	$0.00 Order
38	670005928	CLIP	$13.58 Order
39	670007020	RETAINING CLIP	$11.52 Order
