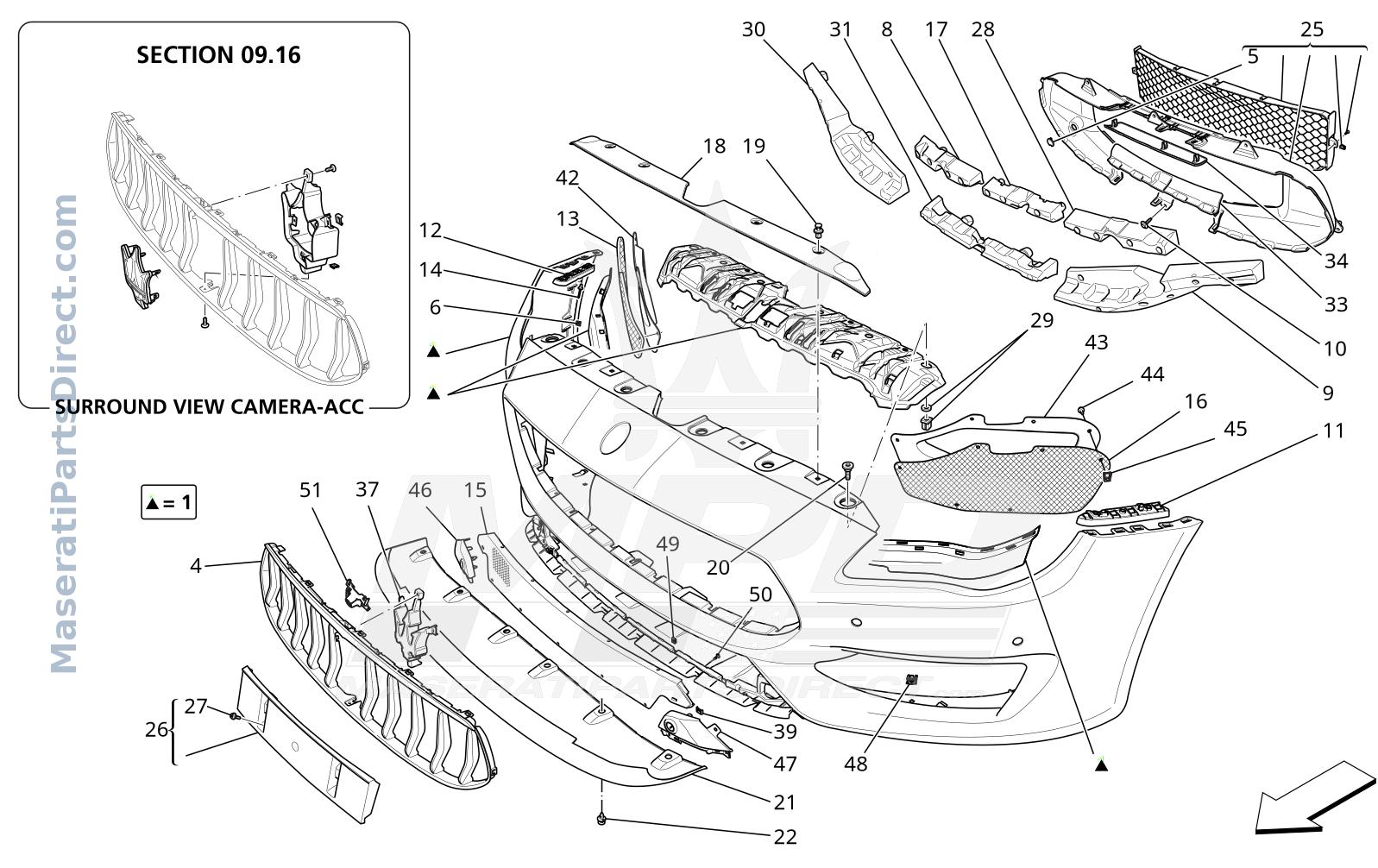

09.10 - 12 - FRONT BUMPER

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673007337	FRONT BUMPER	$2,648.83 Order
4	custom	FRONT GRILLE ASSEMBLY	$0.00 Order
5	670009832	PLUG	$40.10 Order
6	675000192	BRACKET	$9.84 $8.36 In Stock
8	670101222	RH UPPER CENTRAL FRONT BUMPER SHOCK ABSORBER	$32.34 Order
9	670176723	LH LOWER CENTRAL FRONT BUMPER PANEL	$80.51 Order
10	675000077	SCREW	$8.64 Order
11	670001609	LH FRONT BUMPER BRACKET	$35.78 Order
12	670001608	REINFORCEMENT BRACKET	$35.78 Order
13	673007338	RH LOWER GRILLE	$274.81 Order
14	675000323	RIVET	$8.64 In Stock
15	custom	LOWER GRILLE	$0.00 Order
16	673007339	LH LOWER GRILL	$274.81 Order
17	670101221	UPPER CENTRAL FRONT BUMPER SHOCK ABSORBER	$140.27 Order
18	custom	UPPER COVER	$0.00 Order
19	670014562	FASTENER BUTTON	$11.52 Order
20	670003766	SPECIAL SCREW	$11.52 Order
21	custom	FRONT SPOILER	$0.00 Order
22	670014562	FASTENER BUTTON	$11.52 Order
25	670036545	AIR DUCT ASSEMBLY	$246.07 Order
26	custom	FRONT LICENSE PLATE HOLDER	$0.00 Order
27	675000228	SCREW	$12.30 In Stock
28	670101223	LH UPPER CENTRAL ABSORBER	$32.34 Order
29	670005535	BLOCK	$12.98 Order
30	670176722	RH LOWER CENTRAL FRONT BUMPER PANEL	$80.51 Order
31	670037127	LOWER CENTRAL FRONT BUMPER PANEL	$49.28 Order
33	670038185	LOWER COVER	$44.69 Order
34	670038181	UPPER COVER	$42.61 Order
39	675000337	RETAINING CLIP	$20.20 Order
42	670039307	GREY FRAME RH	$67.06 Order
43	670039308	GREY FRAME LH	$67.06 Order
44	675000649	SCREW	$11.40 Order
45	675000648	BRACKET	$10.80 Order
46	custom	SENSOR PLATE RH	$0.00 Order
47	custom	SENSOR PLATE LH	$0.00 Order
48	675000020	CLIP	$24.80 Order
49	675000632	RETAINING CLIP	$9.73 Order
50	675000661	SCREW	$9.20 Order
51	custom	CAMERA COVER	$0.00 Order
