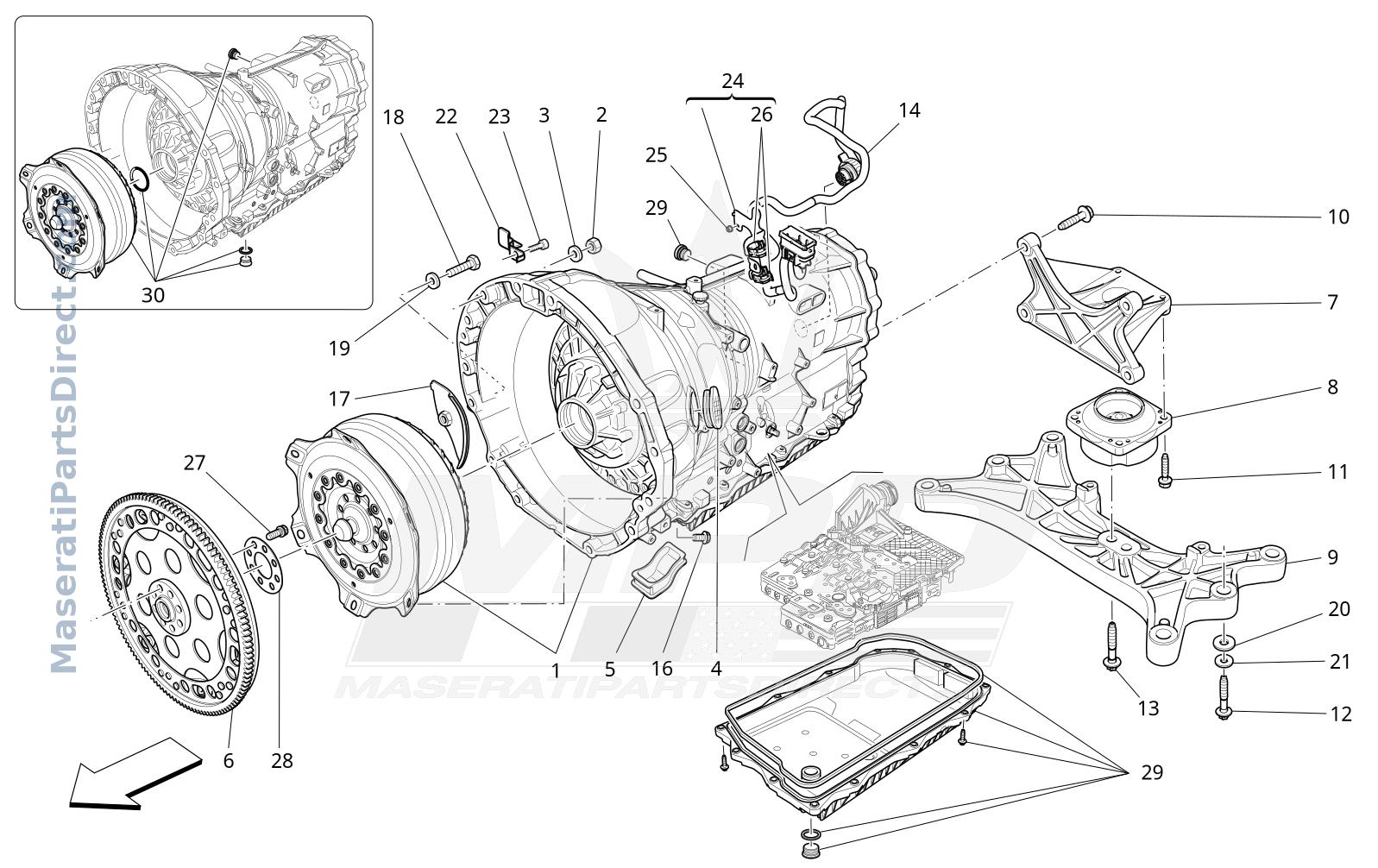

03.10 - 2 - GEARBOX HOUSINGS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670155633	AUTOMATIC GEARBOX ASSEMBLY	$8,053.38 Order
2	675000184	NUT	$4.68 Order
3	675000098	WASHERD.10.2-22X2	$8.00 Order
4	670003520	SIDE PLUG	$22.52 Order
5	670003521	LOWER PLUG	$20.28 Order
6	673010357	ENGINE FLYWHEEL ASSEMBLY	$1,606.50 Order
7	670038976	GEARBOX MOUNTING BRACKET	$302.66 Order
8	675000031	GEARBOX SIDE SUSPENSION BUSHING	$110.52 Order
9	670003953	GEARBOX MOUNTING CROSS MEMBER	$443.79 Order
10	675000120	SCREW	$9.73 Order
11	675000540	SCREWM8X40	$11.55 Order
12	675000145	SCREWM10X55	$10.16 Order
13	675000145	SCREWM10X55	$10.16 Order
14	670007400	AUTOMATIC GEARBOX WIRING HARNESS	$208.10 Order
16	670005384	SCREW	$9.20 Order
17	670003684	CLOSURE PLATE	$22.26 Order
18	675000380	SCREWM8X55	$11.55 Order
19	675000378	WASHERD.8.4-17X1.6	$9.24 Order
20	675000247	WASHERD.10.2-25X3	$9.73 Order
21	675000254	WASHERD.10-20X1.9	$6.21 Order
22	670005079	BRACKET	$18.87 Order
23	11567624	SCREWM6X14	$9.20 Order
24	670005501	BRACKET ASSEMBLY	$39.68 Order
25	675000093	NUTM6	$9.73 Order
26	675000500	CLIP	$0.00 Order
27	670002932	SCREW	$10.16 Order
28	670002257	SHIM	$16.17 Order
29	673003178	OIL SUMP KIT	$946.28 Order
30	673003836	CONVERTER	$3,162.13 Order
