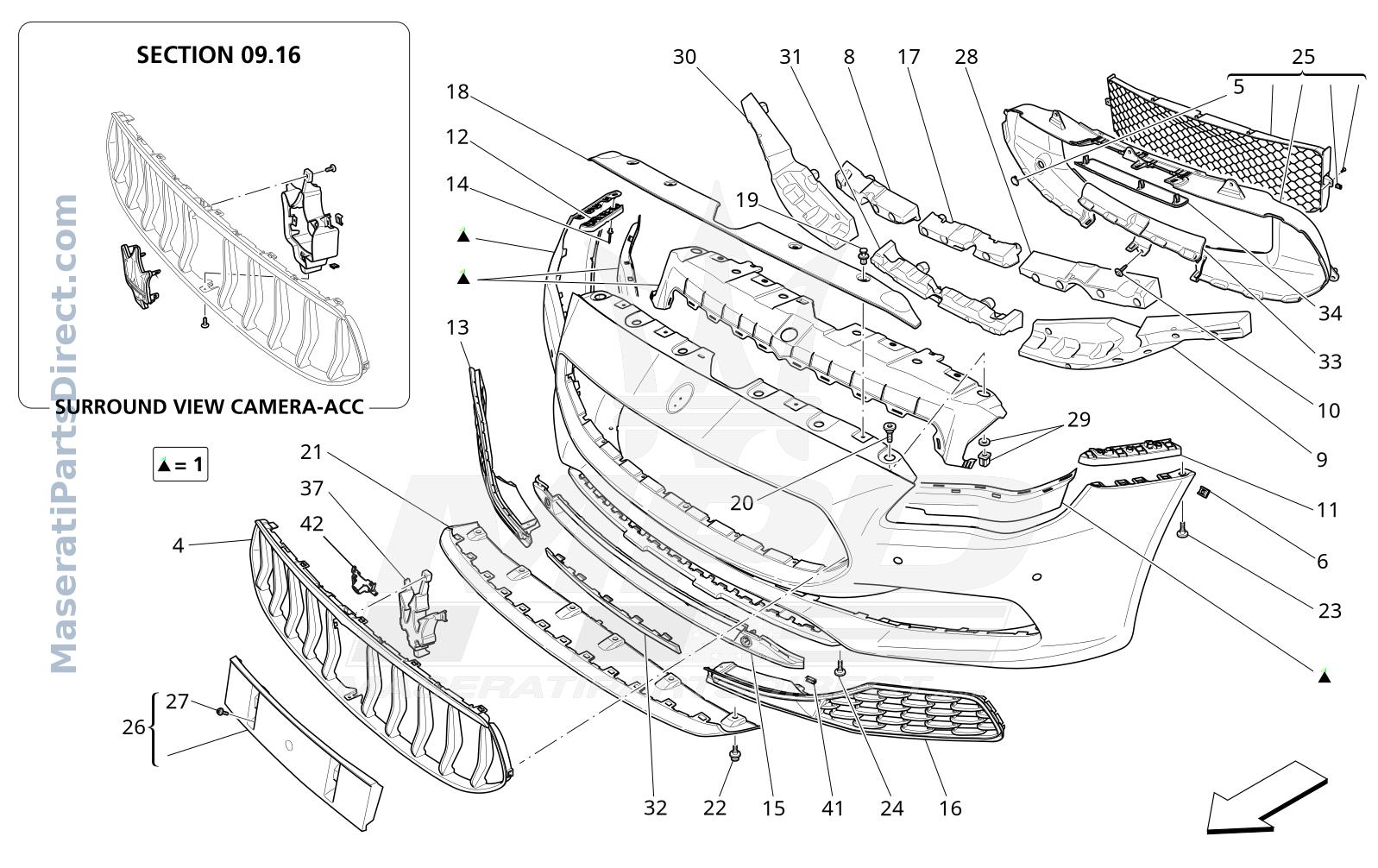

09.10 - 15 - FRONT BUMPER

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673006997	FRONT BUMPER	$5,522.65 Order
4	custom	FRONT GRILLE ASSEMBLY	$0.00 Order
5	670009832	PLUG	$40.10 Order
6	675000192	BRACKET	$9.84 $8.36 In Stock
8	670101222	RH UPPER CENTRAL FRONT BUMPER SHOCK ABSORBER	$32.34 Order
9	670176723	LH LOWER CENTRAL FRONT BUMPER PANEL	$80.51 Order
10	675000077	SCREW	$8.64 Order
11	670001609	LH FRONT BUMPER BRACKET	$35.78 Order
12	670001608	REINFORCEMENT BRACKET	$35.78 Order
13	673007007	RH LOWER GRILLE	$335.53 Order
14	675000323	RIVET	$8.64 In Stock
15	673006998	LOWER CENTRAL FRAME	$801.88 Order
16	673006996	LH LOWER GRILL	$335.53 Order
17	670101221	UPPER CENTRAL FRONT BUMPER SHOCK ABSORBER	$140.27 Order
18	custom	UPPER COVER	$0.00 Order
19	670014562	FASTENER BUTTON	$11.52 Order
20	670003766	SPECIAL SCREW	$11.52 Order
21	673006999	FRONT SPOILER	$425.96 Order
22	670014562	FASTENER BUTTON	$11.52 Order
23	675000057	SCREW	$8.64 $7.34 In Stock
24	670034505	SCREW	$8.00 In Stock
25	670036545	AIR DUCT ASSEMBLY	$246.07 Order
26	custom	FRONT LICENSE PLATE HOLDER	$0.00 Order
27	675000228	SCREW	$12.30 In Stock
28	670101223	LH UPPER CENTRAL ABSORBER	$32.34 Order
29	670005535	BLOCK	$12.98 Order
30	670176722	RH LOWER CENTRAL FRONT BUMPER PANEL	$80.51 Order
31	670037127	LOWER CENTRAL FRONT BUMPER PANEL	$49.28 Order
32	670119722	LOWER COVER	$211.97 Order
33	670038185	LOWER COVER	$44.69 Order
34	670038181	UPPER COVER	$42.61 Order
41	670034560	CLIP	$11.10 Order
42	custom	CAMERA COVER	$0.00 Order
