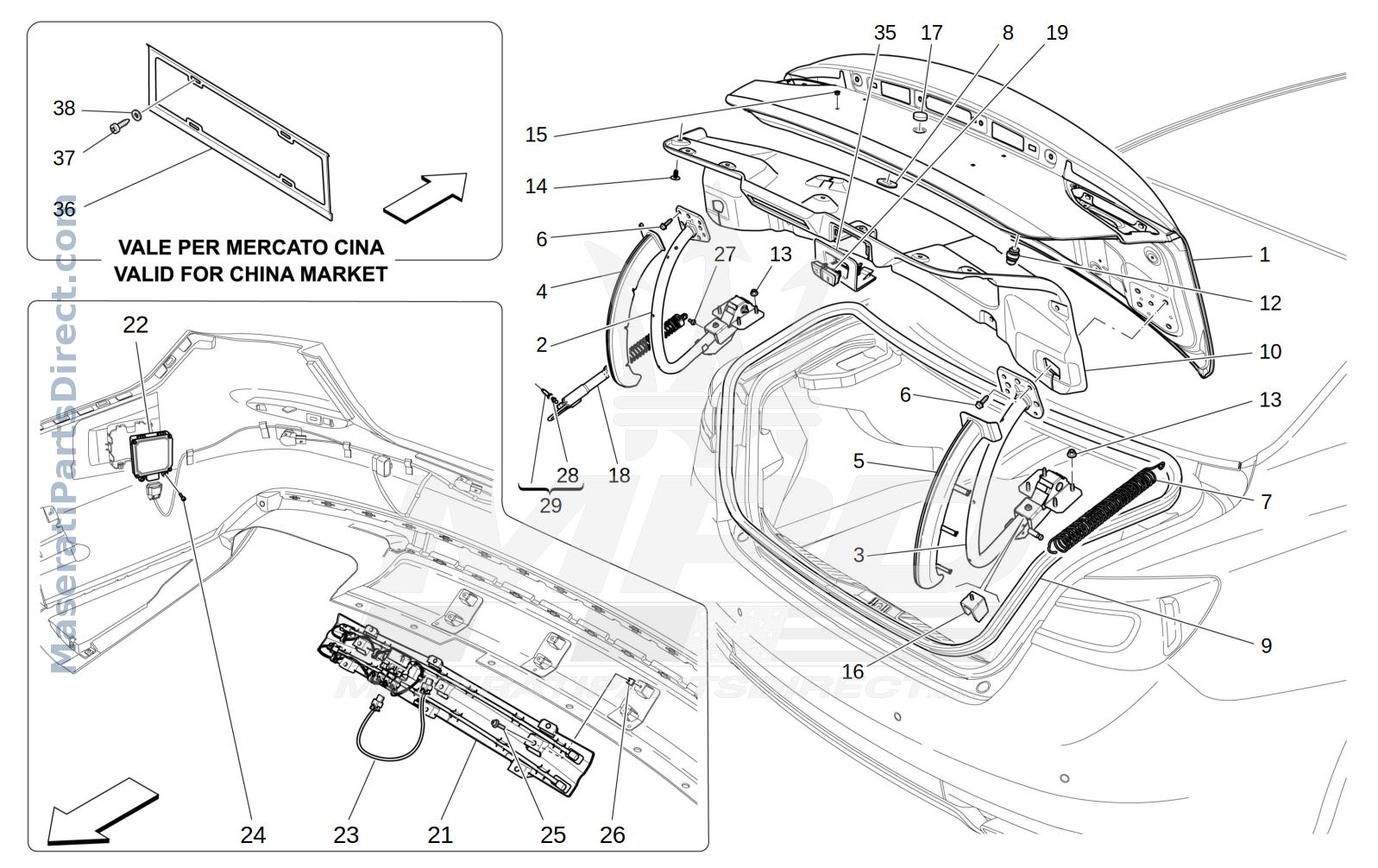

09.21 - 2 - REAR LID

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673005300	BOOT LID	$0.00 Order
1	673017125	BOOT LID	$4,893.35 Order
2	670032969	REAR LEFT BOOT LID HINGE	$547.03 Order
3	670001882	REAR RIGHT BOOT LID HINGE	$252.30 Order
4	custom	LH HINGE COVER	$0.00 Order
5	custom	RH HINGE COVER	$0.00 Order
6	675000113	SCREW	$7.65 Order
7	670033059	BOOT LID SPRING	$327.29 Order
8	675000478	PLUG	$10.40 Order
8	675000479 Replaced by: #675000771.0	PLUG	$0.00 Order
8	675000771	PLUG	$11.25 Order
9	670033870	GASKET	$751.84 Order
10	custom	BOOT LID COVER	$0.00 Order
12	675000410	ANTIVIBRATING PAD	$11.15 Order
13	675000092	NUT	$8.28 Order
14	custom	FASTENER BUTTON6,5X18	$0.00 Order
15	675000022	BLOCK	$18.06 In Stock
16	670033125	PAD	$0.00 Order
17	675000516	RUBBER DAMPER	$7.65 Order
18	670181844	REAR BONNET COMPLETE ACTUATOR	$1,410.85 Order
19	custom	CONTROL PANEL REAR BONNET CLOSURE	$0.00 Order
21	670109186	LIFTGATE OPENING SENSOR	$757.52 Order
22	670106466 Replaced by: #670174821.0	BSA/RPC SENSOR (BLIND SPOT ALERT/REAR TRAFFIC DETECTION)	$0.00 Order
22	670174821	BSA/RPC SENSOR (BLIND SPOT ALERT/REAR TRAFFIC DETECTION)	$423.40 Order
23	670034376	REAR BONNET OPENING SENSOR CABLE	$46.09 Order
24	675000693	SCREW	$9.84 Order
26	670034279	CLIP	$9.73 Order
27	675000559	BALL PIN	$11.40 Order
28	675000559	BALL PIN	$11.40 Order
29	670034114	BALL PIN	$25.67 Order
0	675000558	FASTENER BUTTON	$0.00 Order
35	custom	TRIM PLATE	$0.00 Order
