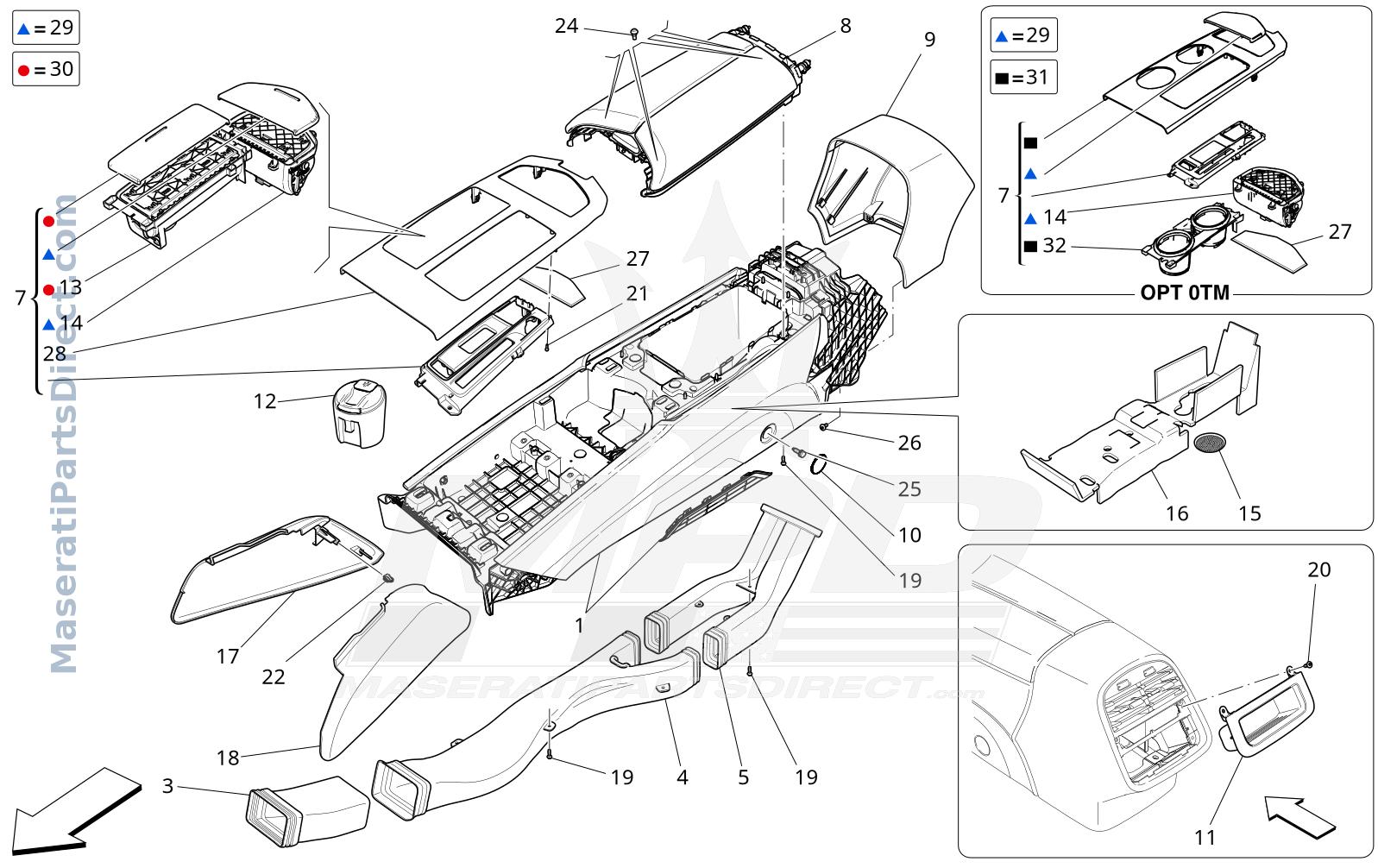

09.51 - 5 - ACCESSORY CONSOLE AND CENTRE CONSOLE

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	COMPLETE TUNNEL COVER STRUCTURE	$0.00 Order
3	670001703	REAR AIR VENT AND HVAC UNION DUCT	$84.88 Order
4	custom	AIR VENT DUCT REAR UNION	$0.00 Order
5	custom	AIR VENT DUCT REAR UNION	$0.00 Order
7	custom	TUNNEL GLOVE COMPARTMENT	$0.00 Order
8	custom	CENTRAL CONSOLE ARMREST	$0.00 Order
9	custom	REAR CENTRAL CONSOLE COVER	$0.00 Order
10	custom	CONSOLE FASTENER COVER CAP	$0.00 Order
11	custom	REAR OPEN GLOVE BOX COMPARTMENT	$0.00 Order
12	custom	ASH TRAY	$0.00 Order
14	custom	CELL PHONE HOLDER	$0.00 Order
15	670006071	CUP HOLDER MAT	$232.76 Order
16	673000119	TUNNEL INSULATION	$664.24 Order
17	custom	RH LOWER FRONT COVER ASSEMBLY	$0.00 Order
18	custom	LH LOWER FRONT COVER ASSEMBLY	$0.00 Order
19	670006127	SCREW	$20.28 Order
20	670006374	SCREW	$12.41 Order
21	670006373	SCREW	$11.52 Order
22	673002721	CLIP	$17.78 Order
24	673002877	STOP RUBBER	$9.73 Order
25	675000199	SCREWM6X18	$8.00 Order
26	670006128	SCREW	$36.65 Order
27	custom	CARPET	$0.00 Order
29	custom	PHONEBOX	$0.00 Order
30	673016868	CUPHOLDER	$1,123.75 Order
31	custom	CENTRAL DASHBOARD TRIM PLATENOT VALID FOR BADGED VERSION	$0.00 Order
32	673015587	CUP HOLDER	$0.00 Order
